Cars, as complex systems of mechanical and electrical components, require special protection to ensure their proper and uninterrupted operation. This protection is primarily provided by fuses, which are responsible for preventing short circuits and electrical overloads in the vehicle’s electrical circuits. Most cars are equipped with two fuse boxes—one located under the hood near the engine, and another inside the cabin, usually next to the driver’s seat or near the steering wheel.

The under-hood fuse box primarily protects key engine components and systems such as the Electronic Control Unit (ECU), cooling fan, ABS braking system, and the battery. In contrast, the fuse box inside the cabin protects internal vehicle components like power windows, interior lights, the radio, infotainment system, and turn signals.

In this article, we’ll explore how the fuse box works, how to troubleshoot it, and how to replace it—so you can easily handle any issues that arise.

What Is a Car Fuse Box and What Is Its Function?

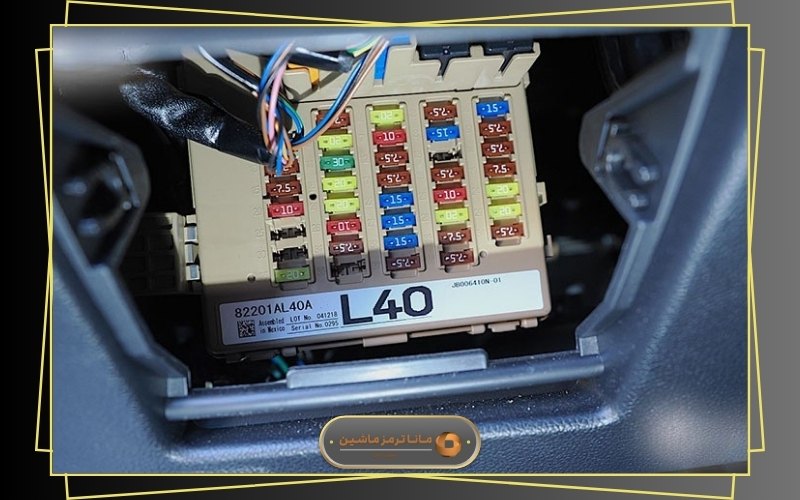

A car fuse box is a collection of fuses, relays, and diodes designed to protect the vehicle’s electrical circuits against overloads or short circuits. This box is powered directly by the car battery, with its wires connected to various electrical components that require protection. Let’s take a closer look at the components of a fuse box:

1. Fuses
   Fuses consist of a conductive wire that burns out and cuts off the circuit if the current exceeds a specified limit. This prevents damage to other electrical components. To use a fuse properly, it’s essential to ensure that the selected fuse matches the current rating of the circuit; otherwise, the fuse may blow prematurely or fail to protect the system.
2. Relays
   Relays are electrically operated switches used to control and switch various circuits in the car. For example, when you turn on the car’s air conditioning, the relay in the A/C circuit activates the electrical flow through a coil, completing the circuit. Relays can control multiple different circuits, making them useful for systems like the heater and headlights.
3. Diodes
   Diodes are commonly used in relays and are responsible for allowing DC current to flow in only one direction. This helps prevent voltage spikes that may occur in the relay coils and improves the stability and performance of the system.

Why Do Car Fuses Blow?

A car fuse usually blows when too much current flows through a circuit. This excessive current is typically caused by malfunctioning electrical components or an overload in the circuit. Common reasons for fuse failure include:

• Faulty switches
• Damaged or frayed wires
• Mechanical issues in the engine
• Internal electrical problems in the vehicle

Identifying and Replacing a Blown Fuse

If your car’s interior lights or hazard flashers are not working, a blown fuse is likely the cause. If you have the necessary skills, you can replace the fuse yourself; otherwise, it is recommended to consult a professional. If you decide to proceed, follow these steps:

1. Locate the Fuse Box
   The location of the fuse box varies depending on the car model. You can find the exact location in the vehicle’s owner manual. Common fuse box locations include:

• Under the hood
• Under the dashboard
• Under the rear seats
• In the trunk

2. Identify the Blown Fuse
   Use a fuse tester to check if a fuse is blown. This simple tool helps you verify whether the fuse is functioning properly.

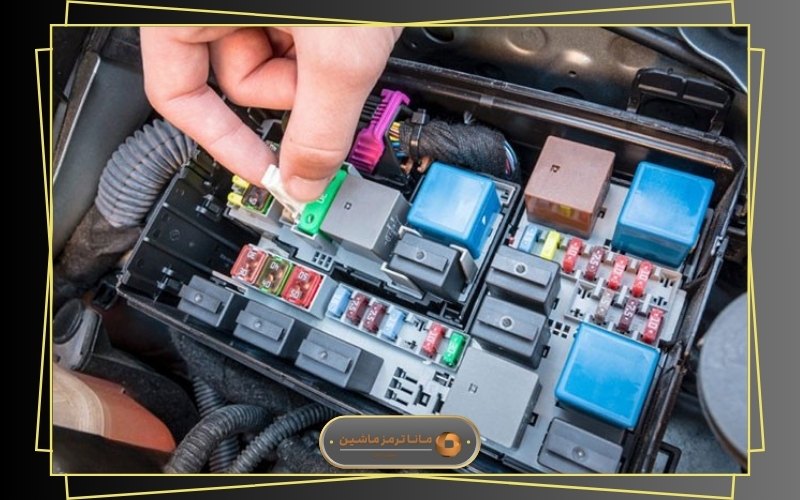

3. Replace with a New Fuse
   Once identified, replace the blown fuse with a new one that has the same specifications. Make sure the new fuse matches the electrical current rating of the circuit.

Empty Slots in the Fuse Box
Car fuse boxes often have several empty sockets that can be used for installing new devices or additional options. These slots can also serve as storage for spare fuses. Be sure to consult the fuse box diagram when using these slots to avoid incorrect connections.

Steps to Replace a Car Fuse Box

If you need to replace your car’s fuse box, carefully follow these steps:

1. Disconnect the Battery
   Before starting, make sure the car engine is off, then disconnect the battery terminals—both positive and negative. Be careful not to injure yourself on the sharp edges of the fuse box while working.
2. Locate the Fuse Box
   The fuse box is usually found either under the hood near the battery or inside the cabin near the steering wheel. If you cannot find it, refer to your vehicle’s manual or search online.
3. Remove the Fuse Box Cover
   Release the locking tab and remove the fuse box cover. Check the fuse diagram inside the cover, which helps you correctly identify the fuses.
4. Disconnect the Wires from the Fuse Box
   Carefully unplug the wires from the fuse box. Label or mark each wire so you can reconnect them correctly later.
5. Install the New Fuse Box
   After disconnecting all wires, remove the old fuse box and install the new one. Then, reconnect all wires carefully.
6. Reconnect the Battery
   Once everything is installed, reconnect the battery and ensure all systems are working properly.

Frequently Asked Questions

1. Are fuse boxes the same in all cars?
   Although the types of fuses are generally the same, the design of the fuse box varies depending on the car’s make and model.

2. How many fuse boxes does a car typically have?
   Most cars have two fuse boxes: one under the hood protecting engine components, and another inside the cabin protecting the vehicle’s internal electrical systems.
